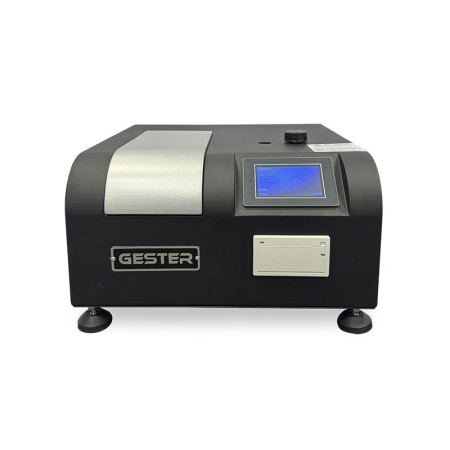

Formaldehyde Content Tester GT-C76

Formaldehyde Content Tester GT-C76

  • 13316
  • Gester - China
  • Contact us
Application: Formaldehyde Content Tester is Used for rapid testing formaldehyde contents in all kinds of textiles, leather, and furs.
Standards:
ISO 14184-1
ISO 14184-2
GB/T 2912.1
GB/T 19941.2
Textiles
Feature

1.Adopt extraction method, according to the national standard method can simultaneously measure formaldehyde measured value, the absorbance values and transmittance values.

2.singlechip controller, color touch screen display in English.

3.Adopt principle of electrochemical sensors, combined with singlechip controller acquisition continuous different points of the concentration absorbance values. Automatically calculated curve formula different concentration correspondent absorbance values.

4.It can choose different standards for formaldehyde content of leather and textile independently.

5.Automatically calculation. It can do 8 standard curves. Calculation adopts the discrete calculation method, and displays the a/ b values and the curve(formula y=a+bx) directly.

6.Connect computer to transmission data, PC software and a standard curve plotted curve accuracy judgment.

7. Fabric Formaldehyde Content Tester equipped with micro-printer to print the report.

Key Specifications

Model

GT-C76

Operating Mode

Microprocessor control

On-line Operation

Can do standard curve and data storage, data statistic analysis\ calculate\ tabulation\ print and other data processing

Measurement Range

Light Transmittance: 0%—100%; absorbancy: 0—2.0;

Formaldehyde content:

5.00-500.00mg/kg (sample attenuation can reach 5000mg/kg)

Wavelength Range

300~1000nm, adjustable;

wavelength precision:±3nm;

wavelength repeatability: ±1nm

Light Source

Imported tungsten halogen lamp(6V/10W, 2000h)

Concentration Precision

<=1% @412nm

Power Supply

AC220V 50Hz  20W

Dimension

450×460×270 mm

Weight

20kg


Accessories



Standard accessories



1set

English Operation Software

1pc

Cable Connect with PC

1pc

Black Calibration Cuvette

1set

Glass Color Matching Container
