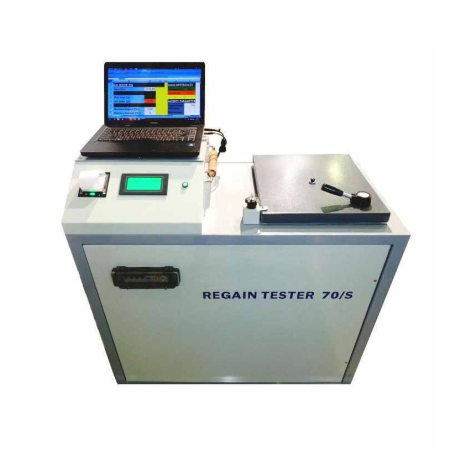

Thiết bị kiểm tra độ hồi ẩm sợi dệt 70S
THÔNG SỐ KỸ THUẬT CHÍNH :
Scale weighing range: | (0 ÷ 4100) g |
Scale accuracy: | ± 0,01 g |
Scale linearity: | ± 0,01 g |
Heating: | 12 KW |
Total power installed: | 14 KW |
Air flow capacity: | (350 - 1000) m3/h |
Temperature measure range: | (0 ÷ 200) °C |
Temperature close control: | (40 ÷ 140) ± 0,5°C |
Basket diameter: | 245 mm; |
Basket height: | 310 mm for raw materials 190 mm for yarn skeins 220 mm for low basis weight; |
Drying time: | 5 minutes for raw material, wool tops, carded slivers, etc.; 7 minutes for yarn skeins of 300 grams; 10 minutes for perforated yarn bobbins of 300 grams of material; |
Power supply: | 3 PH+ Neutral + PE (other voltages or frequencies have to be specified); |
Dimensions: | 1030 x 630 x 1000 mm; |
Net weight: | 170 kg; |
