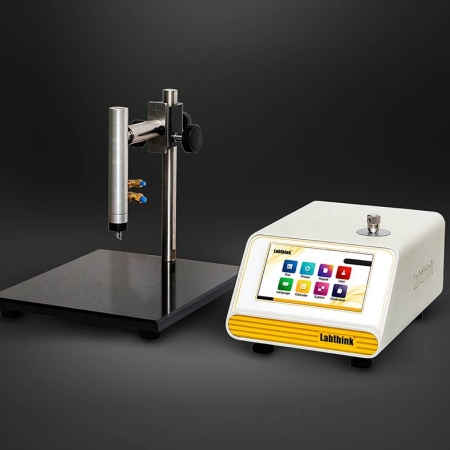

Máy Kiểm Tra Độ Bền Nổ Và Độ Xì Bao Bì C660M

Lượt xem:
22
Thương hiệu:
Labthink - Trung Quốc
Giá:
Liên hệ

Máy Kiểm Tra Độ Bền Nổ Và Độ Xì Bao Bì C660M là thiết bị kiểm tra niêm phong đa năng được thiết kế để đánh giá bao bì hiệu suất cao. Nó hoạt động như một máy kiểm tra rò rỉ chính xác và một máy kiểm tra độ kín niêm phong mạnh mẽ. Máy kiểm tra độ bền nổ, độ xì thực hiện các đánh giá quan trọng như kiểm tra độ bền hàn dán, kiểm tra độ kín, kiểm tra rò rỉ áp suất , bền nổ, kiểm tra khả năng chịu nén, cũng như kiểm tra lực xoắn và lực khớp/tách rời. Nó được ứng dụng chuyên nghiệp để xác định định lượng độ bền niêm phong, chất lượng niêm phong, áp suất nổ và khả năng chịu nén cho nhiều loại bao bì mềm, bao bì vô trùng, nắp nhựa chống giả mạo, ống mềm, nắp đậy và các vật liệu khác.

Product Features^Note1

Multiple Test Modes & Automatic Testing Process

The C660M leak and seal strength tester adopts the positive pressure method, providing multiple test modes including burst test, creep test, creep-to-failure test, and pressure retaining test.
Dual test methods of restraint and unrestraint distension are available at the customer’s choice.
Real-time display of test curves and automatic statistical processing of test data ensure accuracy and reliability.
The system allows customized non-standard testing ranges, suitable for various seal strength testing applications.
Main components and parts are supplied by well-known global manufacturers, ensuring stable performance for leak and seal tester functionality.

Innovative Real-time Monitoring of Gas Inlet Flow

The instrument’s innovative gas flow monitoring enables precise burst pressure leak test and consistent gas inlet control under high pressure.
This feature ensures uniform testing conditions and high repeatability of test data, making it ideal for packaging seal integrity testing.

Brand New Patented Intelligent Touch Operating System

The seal strength test machine features an industrial-grade touch screen, supporting one-button operation, remote upgrades, and simplified user interface.
Chinese and English operating interface
Automatic data storage and power failure memory to prevent data loss
Storage up to 1200 test records
Includes multi-level user management and password-protected login.
Equipped with a micro-printer and USB ports for data transfer (optional).
Conforms to GMP requirements (optional).
Supports Labthink’s unique DataShiled^TM System for data management and connecting with information system (optional)
As a high-efficiency seal testing equipment, it meets the demands of high performance seal testing in modern laboratories.

Test Standard^Note1

ISO 11607-1, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Basic Applications
Plastic Composite Bags The C660M leak and seal strength tester evaluates the compression resistance and sealing performance of plastic films, aluminum films, paper–plastic composites, aluminum–plastic composites, and other flexible packaging bags. It delivers reliable seal strength and leakage detection, making Labthink’s pouch leak tester ideal for high-barrier flexible packaging testing.
Flexible Tubes The C660M seal integrity tester is suitable for flexible tubes used in daily chemical and other products, such as flexible tubes of toothpaste, face cream, cosmetics, pharmaceutics and food. With precise pressure control, the tester ensures efficient seal strength and seal integrity testing for stable product sealing performance.
Creep Test Supports creep testing of various packaging bags and boxes, with an advanced system that enables long-term pressure holding and deformation monitoring for seal strength testing applications.
Creep to Failure Test Applicable to packaging seal integrity testing and failure-pressure analysis of packaging bags and boxes, the instrument delivers consistent and accurate burst-pressure leak test results, making it ideal for packaging engineers and laboratories conducting professional seal testing operations.
Extended Applications
Burst Test Of Blister Packs The C660M leak and seal strength tester can perform precise burst pressure leak test on various blister packs to evaluate seal integrity and resistance to internal pressure. It provides accurate and repeatable seal strength testing results for high-quality packaging validation.
Aerosol Valves Used to test the seal performance of various aerosol valves such as pesticide, hair spray, auto spray paint, and medical spray packages. This seal integrity tester ensures reliable results in high performance seal testing of pressurized packaging components.
Three-Sided Sealing Materials Used to test the pressurization resistance of packaging bags with three-sided seals and one open side. The seal strength test machine delivers consistent results for flexible packaging under controlled stress conditions, ideal for packaging seal integrity testing.
High Pressure Test The seal testing equipment supports a maximum test pressure of 1.6 MPa, enabling high-accuracy seal strength testers operation for challenging packaging materials.
Pilfer-proof Closures Designed to test the seal performance of tamper-evident closures used in beverages, edible oils, condiments, three-piece cans, and paper cans. The tester provides dependable seal test data for food and beverage packaging applications, e.g. closures used in packages for Coke, mineral water, beverage, edible oil, sauce (soy, vinegar and cooking wine), three-piece cans (beer and beverage) and paper cans (cylinder shape for potato chips )

Technical Specifications^Note2

Specifications	C660M Leak and Seal Strength Tester
Test Range	0 ~ 600 KPa; 0 ~ 87.0 psi (standard)
Test Range	0 ~ 1.6 MPa; 0 ~ 232.1 psi (optional)
Resolution	0.1 KPa / 0.01 psi
Pressure Accuracy	±0.25%FS
Gas Injection Head	Φ10 mm (standard) Φ4 mm, Φ1.6 mm (optional)
Gas Flow Rate	0.01~10L/min
Pressure Retaining Time	0.1s ~ 999999.9 s
Gas Supply	Air
Gas Supply Pressure	0.6MPa ~ 0.7MPa (87psi ~ 101psi)
Port Size	Φ8 mm PU Tubing
Instrument Dimension	334 mm (L) x 230 mm (W) x 200 mm (H)
Test Frame Size	305 mm (L) x 356 mm (W) x 338 mm(H)
Power Supply	220VAC±10% 50Hz / 120VAC±10% 60Hz
Net Weight	8Kg (Instrument) 16Kg (Pedestal)

Configurations

Standard Configurations: Instrument, Test Frame, Sealing Gasket, Ф8mm PU Tubing (2m)

Optional Parts: Micro-printer, Professional Software, Communication Cable, Test Fixtures for Extended Applications, Air Compressor, GMP System, DataShield^TM ^Note3

Note: 1. The gas supply port of the instrument is Ф8 mm PU Tubing;
2. Customers need to prepare gas supply.

Note 1: The described test standard, applications and product features should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
Note 3: DataShield^TM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShield^TM system which can be configured as required.

Tập tin PDF:

Sản phẩm cùng loại

Chi tiêt Xem nhanh

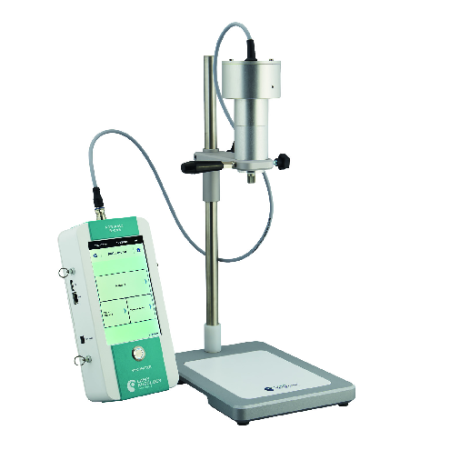

Máy Đo Độ Nhớt Lamy Rheology PORTABLE B ONE
